This is a small follow-on on from the Kodi on Debian Sid guide I did earlier this year to get lirc (IR remote support) working once more, following an upgrade to version 0.9.4, which changes how the lirc services and configuration work (shakes fist at systemd).

After upgrading and following all the instructions in /usr/share/doc/lirc/README.Debian.gz, I was left with the problem of Kodi not responding to any remote input at all.

Firstly, I had to re-source my remote’s configuration (mceusb) from the lirc git repository. Place the *.lircd.conf file from there into /etc/lirc/lircd.conf.d/ and remove/rename other .lircd.conf files already in that directory.

Now, running irw and pressing some buttons on your remote should show you the button pressed and the configuration used.

Next up, Kodi fails to connect to the IR device. There are two trivial but non-obvious solutions:

Firstly, without changing any of the default configuration generated by the migration process outlined in the lirc README file, simply change your Kodi starup command as follows:

$ kodi --lircdev /var/run/lirc/lircd

Alternatively, you may change the lirc configuration, to put the device file back where Kodi expects it:

# in /etc/lirc/lirc_options.conf:
output = /dev/lircd

Then end result should be you happily continuing with your life.

I recently went through the process of reinstalling the media PC connected to my TV, which I use to run Kodi for movies and TV, and Steam in Big Picture mode, which allows me to stream Windows-only games from my desktop to the couch.

I thought it would be useful to describe my setup and the process to achieve it, in case anyone else is interested in creating their own custom Kodi/Debian/Steam builds.

Continue Reading ...

Recently, I’ve made the switch from KDE being my preferred Linux desktop environment/window manager, to i3, a tiling window manager, for both my work and private development environments (my home desktop is still Windows 7, since I do still game enough for it to become painful to dual-boot - so I do most of my development within a VM these days).

I really like it’s absolutely minimal approach - essentially it does nothing itself, it provides a simple window manager, and near limitless configurability. This has proven an excellent learning experience for me, since it’s forced me to get a lot closer to system components usually “hidden” behind sliders and widgets in KDE or Gnome, as well as a host of alternatives to applications those environments provide by default. It’s also resulted in a much cleaner and faster system, containing only the applications and services I actually want.

We recently installed fresh new desktop machines at work, so I thought I’d share some of my setup, in case it’s of some value to anyone else (and my own future reference!). The following steps assume you know how to operate a basic Debian system. I’m not going to go too deep into any usage details for i3 either, since there’s an excellent user guide and comprehensive FAQ system which should answer any questions you may have.

I’d also advocate using “aptitude” as an alternative to “apt-get” for all package installations, updates and removals.

The Basics

I always start off with a Debian “netinst”. Post-install, this provides an incredibly basic bare-bones OS with a few system utilities (during the installation, de-select the pre-configured “Desktop”, “Web Server”, “Mail Server”, etc. options, just keep the “Standard System Utilities”).

First thing to to after installing is install sudo and add your user to the sudoers group, to avoid having to be root to get things done. Now’s also a good time to install vim.

I also like seeing Aptitude’s “visual preview” of changes when doing package management, so to avoid having to call $ aptitude --visual-preview install ... on every invocation, we can edit root’s aptitude config:

/root/.aptitude/config:

Aptitude::CmdLine::Visual-Preview "true";

Upgrade to Unstable/Sid

Perhaps a bit reckless, but I’ve honestly never experienced any crippling issues running Debian Unstable (“sid”). You’ll only need to modify /etc/apt/source.list and replace references to “wheezy” or “testing” with “unstable” or “sid”, and disable the updates and security repositories, leaving you only the main deb and deb-src repositories (I’ve enabled non-free and contrib, since I want to install FlashPlayer and nVidia drivers later):

/etc/apt/source.list:

deb http://cdn.debian.net/debian/ unstable main non-free contrib
deb-src http://cdn.debian.net/debian/ unstable main non-free contrib

After saving the above changes, execute the following:

$ sudo aptitude update
$ sudo aptitude dist-upgrade

The dist-upgrade step will upgrade all installed packages to whatever’s newest in unstable.

Desktop Install

With the base system as up-to-date as it can be, it’s time to install the desktop environment.

$ sudo aptitude install xorg lightdm i3-wm i3status suckless-tools

After installation, I’d reboot and ensure a nice graphical login prompt appears. After login, you’ll be asked some initial i3 setup questions (which are easy to change later) and land in the default i3 workspace. Press Mod+Enter (Mod being whatever you selected in the aforementioned setup questions - likely “windows” key, or Ctrl) to open a new terminal window. It’s probably xterm, which is sort of OK, but I switched to lxtermial - it’s nice and lightweight but still has a fair number of configuration and convenience features (like URL detection - useful for IRC).

If you install another terminal, and opening more terminals results in more xterms rather than your installed terminal, do the following to set your preferred option:

$ sudo update-alternatives --config x-terminal-emulator

Desktop Tweaks

Before digging too deep into installing additional software, it’s a good time to configure some additional options to make life a bit more pleasant.

Look and Feel

In order to make sure your eyes are not offended by the default GTK theme which you may end up seeing a lot of, set up the GTK theme and icon theme:

~/.gtkrc-2.0:

include "/usr/share/themes/Adwaita/gtk-2.0/gtkrc"
gtk-icon-theme-name="Adwaita"

In addition, I found it a lot cleaner and space-maximising to disable i3’s window titles and thin it’s borders down, by addition the following to ~/i3/config:

new_window 1pixel
new_float normal

py3status

Install python-pip via Aptitude, and then $ sudo pip install py3status. I use py3status since it provides some nice additional modules, is more flexible, and is fully compatible with the default i3status configuration. It’s also a good time to check out the i3status configuration documentation and do some tweaks, since a couple of the default entries here are likely not too useful.

Wallpaper

Randomised (of fixed if preferred) wallpapers can easily be achieved by installing feh (which makes for a good i3-friendly picture viewer in general) then adding the following to ~/i3/config:

exec --no-startup-id feh --recursive --randomize --bg-fill ~/Pictures/wallpaper/

Incidentally, the imgur wallpaper gallery is a good place to find some wallpapers.

File Management

Sometimes a GUI file manager can be useful, and for this, a nice light-weight alternative to the bigger desktops’ Nautilus and Dolphins is PCManFM, installed as pcmanfm.

A nice companion application for (compressed) archive management is xarchiver. You may need to install additional tools (such as zip, unzip, unrar-free, etc, depending on the files you commonly work with).

Conclusion

The entire setup to this point should not have taken more than 1-2 hours, depending on download speeds (really, most time is spent just waiting for downloads…), so you can get this kind of environment running with minimal effort and downtime.

I haven’t included anything about multimedia, custom key bindings, lock screens, or others here, but there are loads of other resources around which can fill you in on those and the myriad ways you can configure your i3 environment.

Your next step, if you’re new to i3, should probably be to take a read through the i3 user guide, which is impressively comprehensive.

I wanted to add a unit conversion plugin to ZOMB and would really have liked to use an off-the-shelf existing API, but because this didn’t seem to exist in a nice hosted format already - I had to make it :).

The Units API is written in PHP, and is intended to provide an extremely simple and easy-to-use HTTP API for the conversion between various units of measure. Usage documentation is available on the project’s Github page.

I’m also hosting a publicly usable version, at the following URL, so hopefully next time someone needs this they don’t need to reinvent the wheel (again, refer to documentation linked above for usage):

• http://tools.shrimpworks.za.net/units-api/convert.php

As an aside, this project served as my first introduction to PHPUnit for PHP unit testing, and CI is once again provided by Drone.io which has performed admirably. Design-wise, it was another exercise in defining the public-facing API before a line of code was written, which served as an excellent guide and source of documentation as I worked on it (plus, there’s no need to worry about writing documentation when you’re done :D).

As mentioned, I’ve resurrected an old idea, and began work on it as a bit of a learning/practice exercise. I think it’s working out rather well.

The primary application itself, hosted on GitHub here, is essentially complete, barring the ability to persist your plugin configuration (pfft, who needs to store things anyway).

Some stuff learned along the way:

API-driven development:

Designing the external-facing API (actually defining and completely documenting the exact request and response data structures, not just “there will be a request that does things and a response that looks something like X”) was a huge help. Defining the API allows you to see how the system will actually be used up-front before writing a single line of code, and allows you to easily spot gaps and shortcomings. Once done, the “user documentation” becomes the same documentation I used to implement the back-end, which made it incredibly easy.

Git:

Still learning, getting more comfortable with it. IntelliJ IDEA has excellent built-in Git support out-the-box, and although painful to use in a Windows shell (it’s basically Bash, inside cmd.exe), I’m getting more used to the Git CLI.

Free/online continuous integration:

Initially, I started off using Travis-CI. This requires you to store a “.travis.yml” file within the root of your Git repository which I was rather uncomfortable with (I don’t like “external” metadata type things hanging around in my source repository). As an alternative, I’ve switched to using Drone.io, which just “feels” like a nicer solution. It also has additional features like the ability to store artefacts for download, or publish your artefacts to external services or servers - so you could have successful builds automatically deploy the latest binaries.

Persistence/Storage:

Persistence is hard, so once you start a service up, it should run indefinitely so you never need to write anything to disk. Sigh. Also, this part was not designed at all up-front, and my flailing around trying to get a workable solution is evidence of the need for proper design and planning before jumping in with code.

Aside from that, there are additional projects which were spawned:

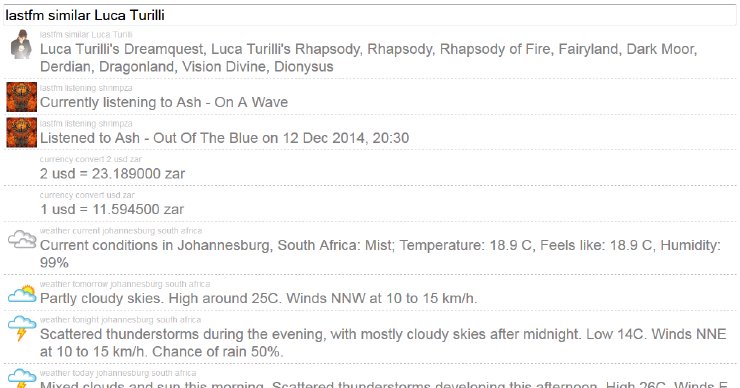

zomb-web

The first front-end for ZOMB. A simple single-page HTML UI. Had some good practice remembering how to HTML and Javascript here…

zomb-plugins

A growing collection of plugins for ZOMB. At present, they’re all PHP (again, refreshing old skills…) and pretty simple. Currently, there’s time (simple current time/time-zone conversion), lastfm (see what someone’s currently listening to, find similar artists), weather (current and forecast conditions for a given city) and currency (simple currency conversion).

None of the above cannot be achieved without a simple web search, so next up I’d like to create a CLI client - weather updates in your terminal!

(Re-)Introducing ZOMB, an IRC bot back-end, which I planned, started work on some years ago, then promptly lost interest after it became vagely usable.

The general idea of ZOMB (like “zomg”, but it’s a bot, not a god [maybe version 3], and it sounds like “zombie” which is cool too) is to provide a client interface-independent bot framework, where bot functionality can be implemented in remotely hosted plugin scripts/applications, unlike a traditional bot where normally you’d need all the code running on one user’s machine/server.

Being interface-independent means a ZOMB client (the thing a user will use to interact with ZOMB) may be an IRC bot, a CLI application, or a web page. Since I’ve been less active on IRC than I’d like lately, the additional options would be useful to me personally, but since almost nobody uses IRC at all any more, ZOMB should hopefully be useful outside of that context.

So how does ZOMB work? From a user’s point of view, it’s exactly like a traditional bot - you issue a query consisiting of the plugin you want to execute, the command to call, along with command arguments. For example, you’d ask a ZOMB bot:

> weather current johannesburg

Where “weather” is the plugin, “current” is a command provided by the weather plugin, and “johannesburg” is an argument. In response to this, ZOMB would provide you a short text result, something like this:

> The weather in Johannesburg is currently 22 degrees and partly cloudy

In the background, ZOMB looked at the input, found that it knew of the “weather” plugin, and made an HTTP request to the remote plugin service passing the command and arguments along. The plugin then did what it needed to do to resolve the current weather conditions for Johannesburg, and returned a result, which ZOMB in turn returned to the requesting client.

As always, a new project provides some practice/learning opportunities:

• API driven development I know what I want ZOMB to be able to to, so I began by defining the client and plugin APIs, around which the rest of the design must fit. I normally write a bunch of code, then stick an API on top of it, but trying it the other way around this time. Seems to be working.
• Test driven development just to keep practicing :-)
• Git and Github since we’re hopefully going to be using Git at work in the near future, best to get some practice in.
• Custom Ant and Ivy build scripts I like Ant and Ivy and need to practice configuring and maintaining them from scratch.
• Travis-CI continuous integration for Github projects, since it’s cool to have a green light somewhere showing that stuff’s not broken, and I’ve never used any CI stuff outside of work.
• More granular commits committing smaller changes more often - I don’t know if this is a good thing or not, but seeing how it works out
• All on Windows I haven’t really built a proper project on Windows for years :D

So, being stuck without access to Photoshop and my regular Windows PC has taught me a little about GIMP – basically it’s exactly the same as Photoshop with a less slick UI :D.

Also, since I haven’t really written anything tutorial-ish in many many years, so this is as much about brushing up on those skills as anything else.

This is a guide for quick and simple photo enhancement using GIMP.

Continue Reading ...

With all the anti-NSA “spying” and fears of big corporate data collection stuff flying around lately, a lot of interesting products and tools have been given a bunch of visibility as alternatives to the traditional offerings now see as somewhat  “suspect”.

Ignoring the paranoia, prism-break.org has a huge collection of fun stuff to play with.

A long time ago, in a galaxy not far away, I created a very small application named SaveScreen. Today I’m rather pleased to release a much-improved SaveScreen 2.

A couple of anti-virus applications complained that the .dll file distributed with SaveScreen which enabled detecting when “Print Screen” was pressed, was a virus or malware of some sort, so even I was unable to use SaveScreen, which made my cry.

Finally fed up, I set out to resolve the situation by creating a brand new application which did not rely on random keyboard hooks and stuff. The result is SaveScreen 2.

In addition to no longer being flagged as a virus, SaveScreen 2 features direct ImageShack posting (complete with automatic forum code creation and thumbnail support), and FTP uploads of screenshots. Something which may be rather handy (just don’t take a screenshot of your bank statement then complain when the whole world is exposed to it - use with care). Also, it can save screenshots in per-application folders, making organisation somewhat neater.

Heh, I guess there are already plenty of tools out there which do this sort of thing already (never seen them personally, but then I’ve never looked either, heh), but this only took me half an evening to throw together anyway.

Basically, it’s a Python (uses youtube-dl) and PHP-powered web-based YouTube video downloader and converter, you just stick in the URL to a YouTube clip you want to save, and it will download it and offer it for download as an MPEG which you can save on your PC and play in all it’s low-quality glory whenever you want.

Basically it automates the following, which can be run on any Linux PC:

# youtube-dl.py -o myvid.flv http://www.youtube.com/watch?v=123abc # ffmpeg -i myvid.flv -ab 56 -ar 22050 -b 500 -s 320x240 myvid.mpeg

As an added benefit, it stores a complete history of downloaded clips, so you and others can re-download them at any time without having to do the whole fetch/convert process over again. Plus it uses a nifty fake AJAX waiting effect :P.

Requires Linux with ffmpeg, Python 2.4+, and PHP 4.3+.
